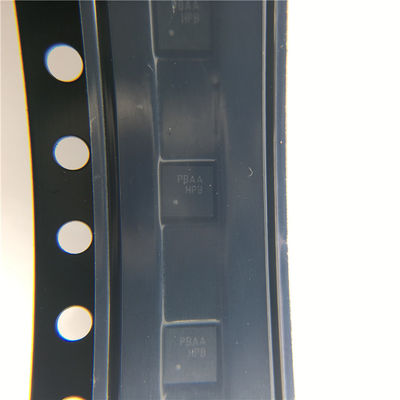

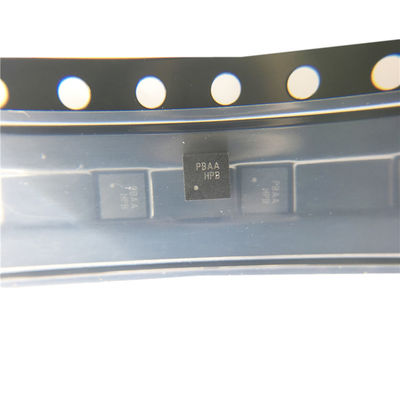

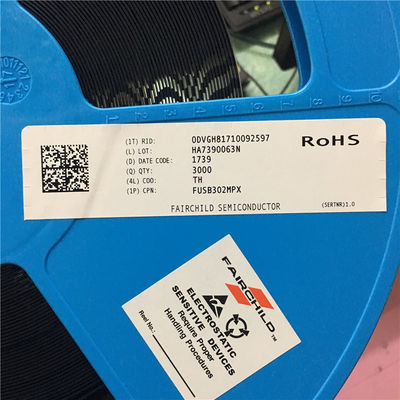

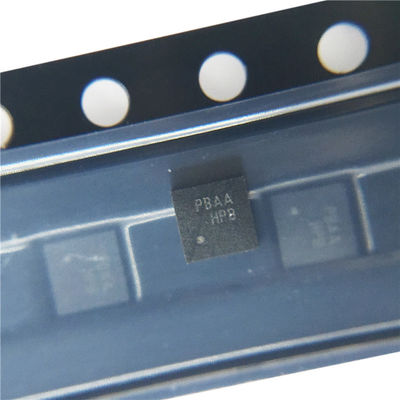

Integrated Circuits USB Interface IC Chip FUSB302MPX Type-C Control IC with PD

•  Integrated Circuits USB Interface IC Chip FUSB302MPX Type-C Control IC with PD

 App Characteristics

•  Dual-Role Functionality with Autonomous DRP Toggle
•  Ability to connect as either a host or a device based on what has been attached.
•  Software configurable either as a dedicated host, dedicated device, or dual role.

           - Dedicated devices can operate both on a Type-C receptacle or a Type-C plug with a fixed CC and VCONN channel.

•  Full Type-C 1.1 Support. Integrates the following functionality of the CC pin

           - Attach/Detach Detection as Host

           - Current Capability Indication as Host

           - Current Capability Detection as Device

           - Audio Adapter Accessory Mode

           - Debug Accessory Mode

           - Active Cable Detection

•  Integrates CCx to VCONN switch with over-current limiting for powering USB3.1 Full Featured cables.
•  USB Power Delivery (PD) 2.0, Version 1.1 Support

           - Automatic GoodCRC Packet Response

           - Automatic retries of sending a packet if a GoodCRC is not received

           - Automatic soft reset packet sent with retries if needed

           - Automatic Hard Reset Ordered Set Sent

•  Dead Battery Support (SNK Mode Support when No Power Applied)
•  Low Power Operation: ICC = 25 μA (Typical)

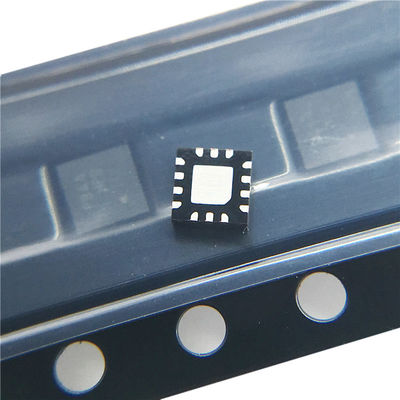

•  Packaged in 9-Ball WLCSP (1.215 mm x 1.260 mm) and 14-lead MLP (2.5 mm x 2.5 mm, 0.5 mm Pitch

• USB Interface IC Chip FUSB302MPX Type-C Control IC...

• Widely used in stage, concert, network communication,Smartphones  Tablets   Laptops   Notebooks  Power Adapters   Cameras   Dongle
